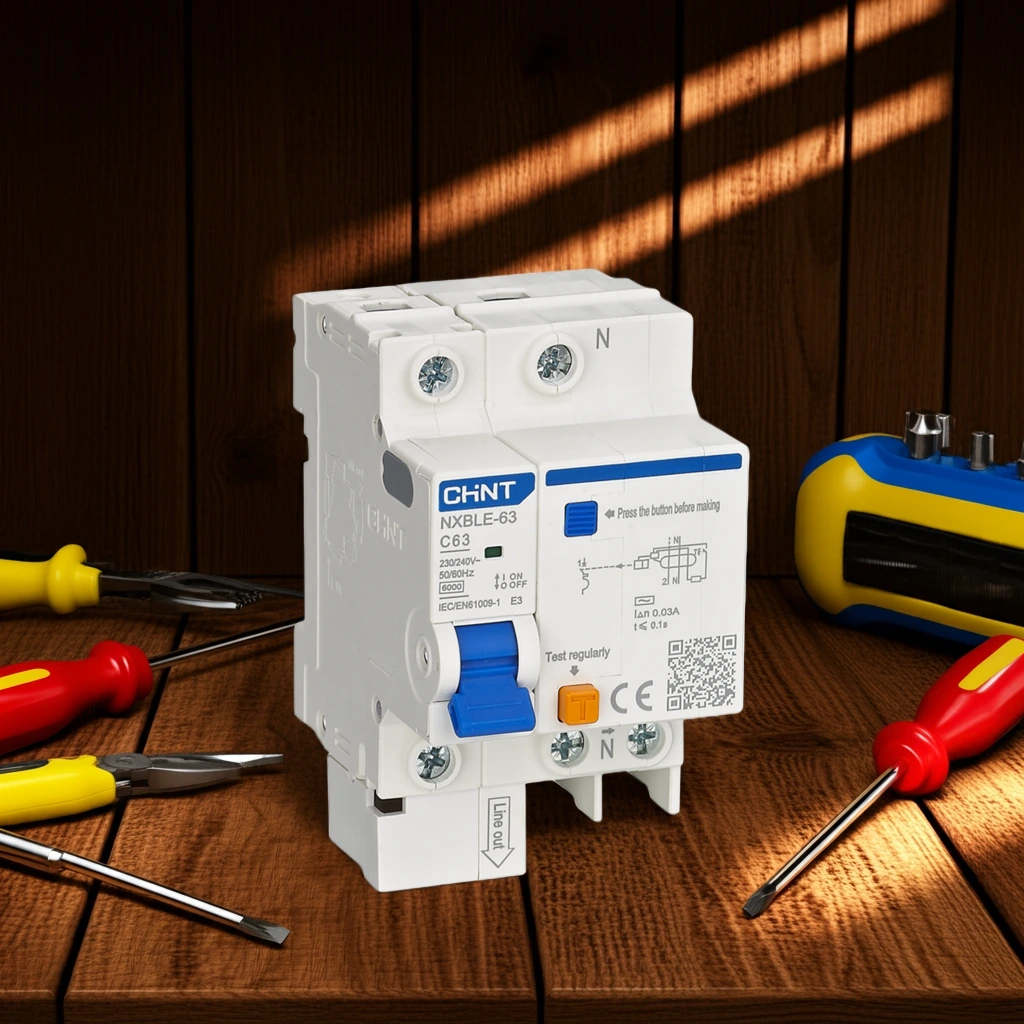

The CHINT NXBLE-63 2P (1P+N) Residual Current Operated Circuit Breaker (RCBO) is a crucial safety device that protects single-phase electrical circuits from overcurrent, short circuits, and residual current (earth leakage) faults. The “1P+N” setup means it has one pole for the live wire and another for the neutral. With a robust 63A rating, it can easily handle moderate to high current loads. This RCBO is a smart combination of a miniature circuit breaker (MCB) and a residual current device (RCD) all in one. It provides comprehensive protection against electrical hazards, making it a popular choice for both residential and commercial applications. Quickly disconnecting the circuit when it senses any leakage current helps prevent electric shocks and electrical fires.

Features of NXBLE-63 1P+N Residual Current Operated Circuit Breaker:

• 1P+N Configuration: This arrangement protects single-phase circuits that have a neutral wire.
• RCBO Functionality: It combines the capabilities of an MCB (which protects against overcurrent and short circuits) with an RCD (which safeguards against residual current and earth leakage).
• Residual Current Sensitivity: (If you know the sensitivity, like 30mA, please specify. Typically, it’s set at 30mA for human safety.)
• Thermal-Magnetic Trip: This feature safeguards against overloads and short circuits.
• DIN Rail Mounting: Installation is a breeze in distribution boards.
• Wide Ampere Range: You can find options available in various ampere ratings.
• Visual Trip Indication: This shows when the device has tripped.
• Test Button: This allows users to check the functionality of the RCD.

Specifications of NXBLE-63 1P+N Residual Current Operated Circuit Breaker:

• Model: CHINT NXBLE-63
• Number of Poles: 2 Pole (1P+N)
• Rated Voltage (Un): 240V AC
• Rated Current (In): 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
• Breaking Capacity (Icn): (Specify breaking capacity in kA)
• Residual Current Sensitivity (IΔn): (Specify, e.g., 30mA / 300mA)
• Trip Curve: (Specify trip curve, e.g., B, C, or D)
• Mounting: DIN rail
• Frequency: 50/60Hz

Uses:

• Residential distribution
• Commercial distribution
• Sensitive equipment
• Lighting circuits
• Appliance circuits
• RCD and overcurrent protection

Benefits:

• Combined protection
• Enhanced safety
• Easy installation
• Versatile application
• Cost-effective
• Increased safety

Package includes:

• 1x NXBLE-63 2 Pole (1P+N, 2P) Residual Current Operated Circuit Breaker
