₨ 8,000
| SKU | Description | Ampere Ratings | Price | Quantity | |
|---|---|---|---|---|---|
| 182728 | MCB, NB1-63DC, 4P, 1000 VDC |
1 Amps | ₨ 8,000 | ||
| 182729 | MCB, NB1-63DC, 4P, 1000 VDC |
2 Amps | ₨ 8,000 | ||
| 182730 | MCB, NB1-63DC, 4P, 1000 VDC |
3 Amps | ₨ 8,000 | ||
| 182731 | MCB, NB1-63DC, 4P, 1000 VDC |
4 Amps | ₨ 8,000 | ||
| 182732 | MCB, NB1-63DC, 4P, 1000 VDC |
6 Amps | ₨ 8,000 | ||
| 182733 | MCB, NB1-63DC, 4P, 1000 VDC |
10 Amps | ₨ 8,000 | ||
| 182734 | MCB, NB1-63DC, 4P, 1000 VDC |
16 Amps | ₨ 8,000 | ||
| 182735 | MCB, NB1-63DC, 4P, 1000 VDC |
20 Amps | ₨ 8,000 | ||
| 182736 | MCB, NB1-63DC, 4P, 1000 VDC |
25 Amps | ₨ 8,000 | ||
| 182737 | MCB, NB1-63DC, 4P, 1000 VDC |
32 Amps | ₨ 8,000 | ||
| 182738 | MCB, NB1-63DC, 4P, 1000 VDC |
40 Amps | ₨ 8,000 | ||
| 182739 | MCB, NB1-63DC, 4P, 1000 VDC |
50 Amps | ₨ 8,000 | ||
| 182740 | MCB, NB1-63DC, 4P, 1000 VDC |
63 Amps | ₨ 8,000 |

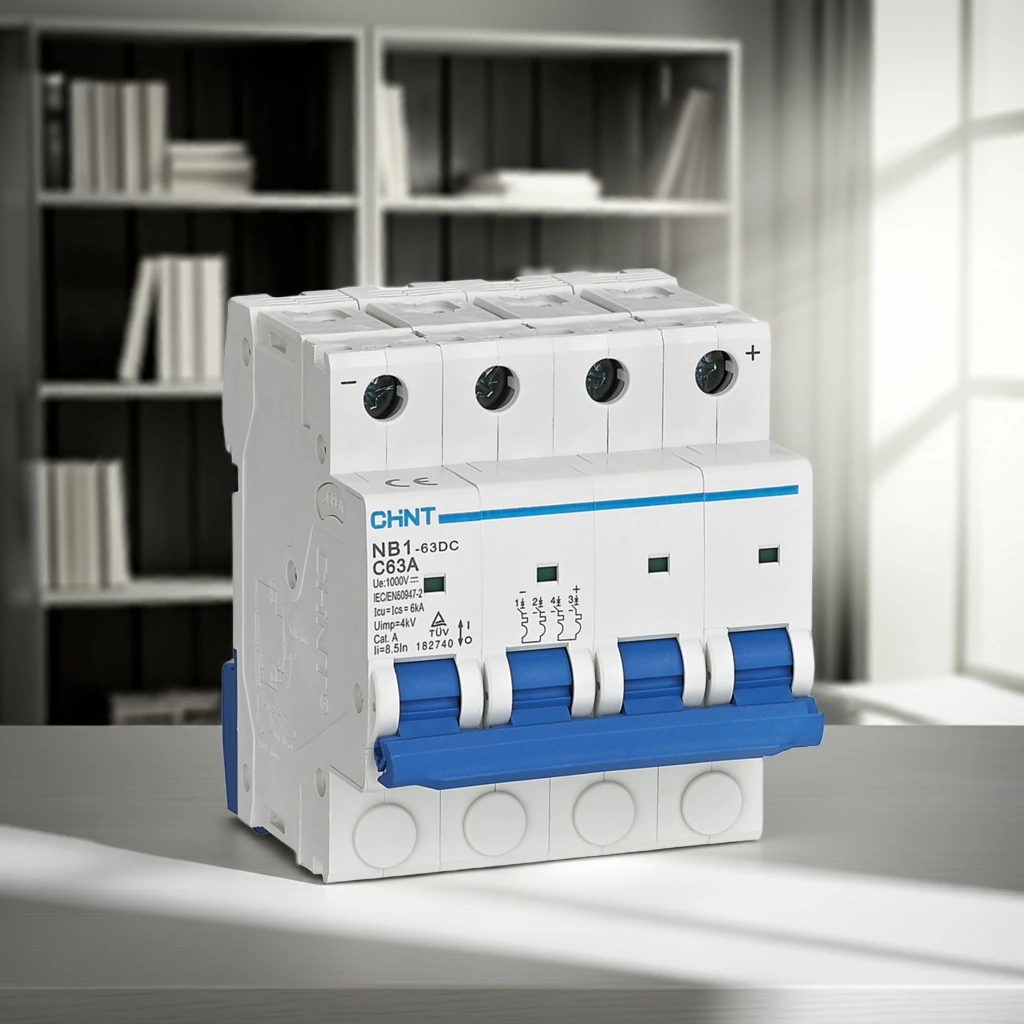

The CHINT NB1-63DC 4 Pole MCB is a specialized DC miniature circuit breaker designed for solar power systems, battery storage, and renewable energy applications. Unlike standard AC breakers, this DC MCB is engineered to handle the unique arc characteristics of direct current, ensuring complete protection against overloads and short circuits.
Its 4-pole structure makes it suitable for large-scale DC installations where multiple lines require simultaneous protection.
Designed for DC applications up to 1000V
4-pole protection for advanced safety
High 6kA breaking capacity
Thermal-magnetic tripping mechanism
DIN rail mounting for easy installation
Compact design with clear ON/OFF indication
Long mechanical endurance
Model: CHINT NB1-63DC
Poles: 4P
Rated Current (In): 6A to 63A (variants available)
Rated Voltage (Un): Up to 1000V DC
Breaking Capacity (Icn): 6kA
Trip Curve: C Curve
Mounting: DIN rail
Compliance: IEC60947-2, IEC60898-2
Solar PV systems (string and combiner boxes)
Battery energy storage solutions
DC distribution panels
EV charging stations
Industrial DC machinery
With Pakistan’s growing demand for solar energy and DC applications, the CHINT NB1-63DC 4 Pole breaker is one of the most reliable and affordable solutions. Its competitive price (PKR 6,800 – PKR 7,500), strong breaking capacity, and global compliance make it a top choice for engineers, contractors, and solar installers.
👉 Available for delivery in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, and across Pakistan.
Q1: What is the price of CHINT NB1-63DC 4 Pole in Pakistan?
The price of this product is PKR 8,000, depending on the amp rating.
Q2: Can this MCB be used for AC systems?
No, it is designed specifically for DC applications such as solar and battery systems.
Q3: Is it compatible with solar inverters?
Yes, it is widely used in solar PV inverters and DC distribution panels.
Q4: What standards does it follow?
It complies with IEC60947-2 and IEC60898-2 for DC protection.
The CHINT NB1-63DC 4 Pole Miniature Circuit Breaker (MCB) provides reliable DC protection for solar power and renewable energy systems. With a 6kA breaking capacity, thermal-magnetic trip, and 4-pole safety design, it is ideal for DC circuits up to 1000V.
💰 Price in Pakistan: PKR 6,800 – PKR 7,500 (depending on amp rating)
| Model no. | Description |
| 182714 | MCB, NB1-63DC, 4P, 1A, 1000 VDC |
| 182715 | MCB, NB1-63DC, 4P, 2A, 1000 VDC |
| 182716 | MCB, NB1-63DC, 4P, 3A, 1000 VDC |
| 182717 | MCB, NB1-63DC, 4P, 4A, 1000 VDC |
| 182718 | MCB, NB1-63DC, 4P, 6A, 1000 VDC |
| 182719 | MCB, NB1-63DC, 4P, 10A, 1000 VDC |
| 182720 | MCB, NB1-63DC, 4P, 16A, 1000 VDC |
| 182721 | MCB, NB1-63DC, 4P, 20A, 1000 VDC |
| 182722 | MCB, NB1-63DC, 4P, 25A, 1000 VDC |
| 182723 | MCB, NB1-63DC, 4P, 32A, 1000 VDC |
| 182724 | MCB, NB1-63DC, 4P, 40A, 1000 VDC |
| 182725 | MCB, NB1-63DC, 4P, 50A, 1000 VDC |
| 182726 | MCB, NB1-63DC, 4P, 63A, 1000 VDC |
Compliant standards: VITS60898-
1 Compliant certification: CE
Major function: Overload protection, short circuit protection, positive isolation
Technical parameters
Rated current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Rated voltage: 380V~/400V~/415V
Frequency: 50/60Hz
Electromagnetic release type: B, C, D
Number of poles: 4P
Rated impulse withstands voltage (Uimp): 4KV
